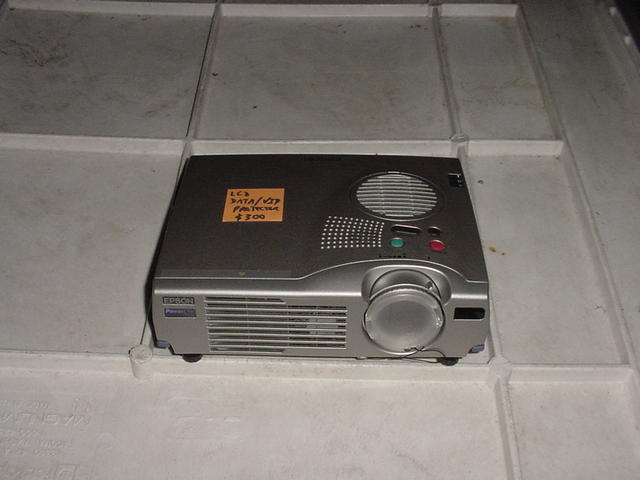

Epson EMP-710 3LCD Projector Specifications
Aspect Ratio 4:3 (Native)
Brightness 1000 ANSI Lumens
Contrast Ratio 400:1
Display Type 0.9" Polysilicon TFT LCD x 3
Resolution (Native/Max) XGA (1024 x 768) UXGA (1600 x 1200)
Video Compatibility NTSC, NTSC 4.43, NTSC 50, PAL, PAL-M, PAL-N, PAL 60, SECAM
Projection Lens F = 2.0 ~ 2.2
Number of Colors 16.7 Million Colors
Size Dimensions (WxHxD) 10.5in. x 8.4in. x 3.4in.
(26.67cm x 21.34cm x 8.64cm)
Weight 5.8 lbs. (2.63 kg)
Inputs 1 x RGB Mini D-Sub 15pin
1 x Stereo Mini Jack
1 x Composite
1 x S-Video
1 x RGB Video
1 x RCA Video
2 x RCA Audio
Outputs 1 x Stereo Mini Jack
Audio 1 x 1W Monaural
Control 1 x RS-232C DIN 9pin, 1 x USb Type B
Power Supply 100 ~ 120 / 200 ~ 240 V / 50 ~ 60 Hz
Operating Temperature 41°F ~ 95°F (5°C ~ 35°C)
Operating Humidity 20 ~ 80% (Non-Condensing)
Storage Temperature 14°F ~ 140°F (-10°C ~ 60°C)
Storage Humidity 10 ~ 90% (Non-Condensing)
Lamp Type 120W UHE
Projection Distance 3.6ft. ~ 45.3ft. (1.1m ~ 13.81m)
Projection Mode Front, Rear, Ceiling
Projection Screen Size (Diagonal) 26in. ~ 300in. (66.04cm ~ 762cm)
Brightness Uniformity 90%
Dot Clock 13.5 ~ 162 MHz
H-Sync Range 15 ~ 92 kHz
V-Sync Range 50 ~ 96 Hz
